MATRIX公司介绍：

意大利MATRIX公司是世界上知名的电磁阀及气动产品生产企业，专业生产电磁阀、分气阀、气缸及系列气动产品，在世界上具有很高的声誉。
代表型号：820系列、850系列、860 PCM系列、720系列、750系列、630系列、EPR100系列。

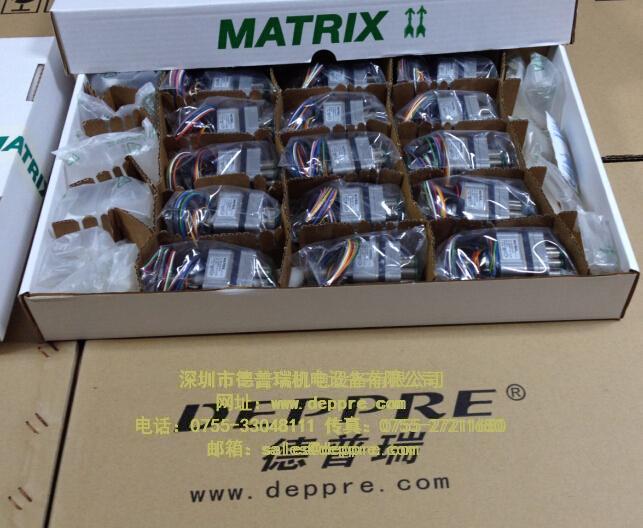

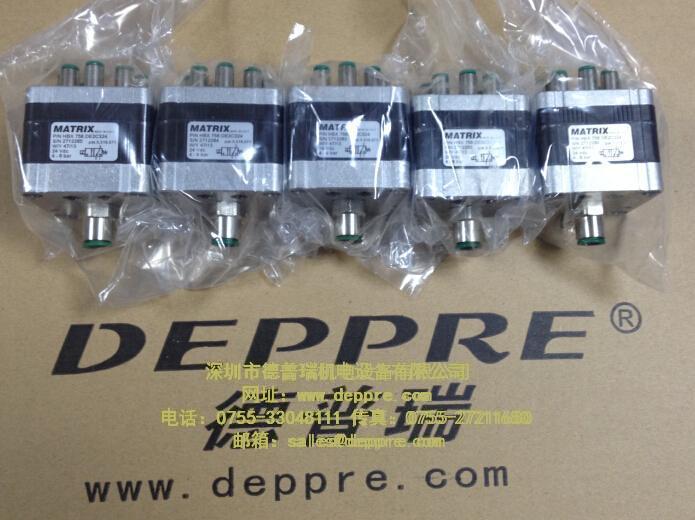

MATRIX电磁阀HMX758.8EXC3JJ-02
MATRIX电磁阀HBX758.8E1C324
MATRIX电磁阀HBX758.8E8C324
MATRIX电磁阀HBX758.DE2C324
MATRIX电磁阀MX721.1X0C224-H01
MATRIX电磁阀JMX721.102C3JJ
MATRIX电磁阀JMX721.102A3JJ

MATRIX分气阀，MATRIX电磁阀，MATRIX阀门，MATRIX液压阀

The SPR 1000 is a closed loop electronic pressure regulator with an integrated high performance volume booster (5000 Nl/min @ 6 bar power stage7, able to convert a variable analog or digital input signal (current, voltage, keypad, RS-232) into a proportiional pneumatic output and maintain with precision a required downstream pressure. Equipped with an 8 bit microcontroller, it can process signals and commands, carry out complex functions and easily interface with other control/monitor systems via serial RS-232, perfectly integrating in applications which had required more elaborate and expensive systems up till now. The compact and functional design, overall performances and reliability makes for an effortlrss integration in any advanced pneumatic system that requires an active component quuickly adaptable to any specific requirement. The input signal, which could be analog (0-5 V, 0-10 V, 4-20 mA) or digital (serial Rs-232, keypad/display), is processed by the microcontroller and converted into a proportional pressure output (0-7 bar or optional 0-12 bar) by using PWM (Pulse Width Modulation) controlled high-speed solenoid valves for feed and exhaust functions. An integrated pressure sensor continuously monitors the output pressure of the SPR 1000 providing a feedback to the controller that compares this value to the desired setpoint, which is set by the input signal. Thus any variation of the output pressure can be quickly and precisely compensated in order to maintain the requested downstream pressure. This closed loop system has a reaction time of less than 5 ms. In addition, the SPR 1000 may supply an analog output in proportion to the downstrea pressure.

The SPR 100 ia available in two basic versions:
? SPR 100A Equipped with analog/digital input interface (0-5 V, 0-10 V, 4-20 mA*, RS-232) and status leds.

? SPR 100D equipped with analog/digital input interface (0-5 V, 0-10 V, 4-20 mA*, RS-232), keypad/display user interface, status leds.


Pneumatic solenoid valve MATRIX mechatronics
MXPD 820, 2/2, NC, 180 Nl/min, 1 ms

Pneumatic solenoid valve MATRIX mechatronics
MXPD 720, 3/2, NC-NO, 100 Nl/min

Pneumatic solenoid valve MATRIX mechatronics
MXPD 840, 2/2, NC, 300 Nl/min, 1 ms

Pneumatic solenoid valve MATRIX mechatronics
MXPD 750, 2/2-3/2, NC-NO, 100÷700 Nl/min

Miniature 3-way pneumatic valve MATRIX mechatronics
MXPD 320, 3/2, NC-NO, 30 Nl/min, 200 Hz

Pneumatic solenoid valve MATRIX mechatronics
MXPD 890, 2/2, NC, 100÷1600 Nl/min, 1 ms

Pneumatic flow control valve MATRIX mechatronics
MXPD 860, 2/2, NC, PCM, 1-750 Nl/min

Electronic pressure regulator MATRIX mechatronics
MXPD EPR100, 0-5/10V, RS232, 60 NL/min

Electronic pressure regulator MATRIX mechatronics
MXPD EPR200/300/500, 0-5/10V, RS232, 200÷300÷500 Nl/min

Electronic pressure regulator MATRIX mechatronics
MXPD SPR1000, 5000 Nl/min, IP65, 0-5/10V, 4-20mA, RS232

Electronic fuel injection MATRIX mechatronics
MXAD HD, CNG, LPG

Electronic fuel injection MATRIX mechatronics
MXAD HS, CNG, LPG

Monitoring and control system MATRIX mechatronics
MXTD

Piezoelectric actuator MATRIX mechatronics
MXTD PZ, RS422

MATRIX国内专业供应商：

深圳德普瑞优价销售MATRIX系列产品；
电话： 0755-27219112 / 32920955 / 32920956
邮箱：sales@deppre.com  网址：www.xsdtools.cn

“以上产品信息为德普瑞收集整理，转载请注明来源”
